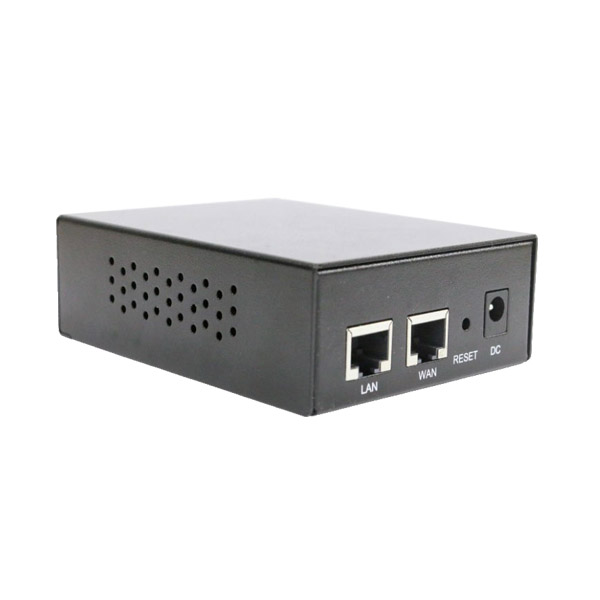

SL-IR4
The Sealan High Speed Smart LTE /LTE-A Router (IR4) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
Key Feature
- Supports WWAN, WAN, WLAN link backup and ICMP detection
- Supports hot backup , warm backup and load balancing
- IPsec/PPTP/L2TP/GRE
- Management and maintenance via Web/CLI/SNMP/Cloud
- Industrial design desktop or wall mounting or DIN rail mounting
- Two 100Mbps ethernet port
- 9~30V Power adapter
Specification
| Cellular Interface | |
|---|---|
| Cellular Interface | 1xMAIN |
| Connector | SMA, female |
| SIM | 1x (3 V & 1.8 V) |
| Ethernet Interface | |
|---|---|
| Number of ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
| WAN port | 1 |
| Magnet isolation protection | 1.5KV |
| WiFi Interface (optional) | |
|---|---|
| Number of antennas | 2 |
| Connector | RP-SMA, male |
| Standards | 802.11 b/g/n supporting AP and Client modes |
| Frequency band | 2.4 GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Data speed | 2*2 MIMO, 300 Mbps |
| RF output power(+/-1 dBm) | 802.11b 19 dBm 802.11g 19 dBm 802.11n (20 MHz) 18 dBm 802.11n (40 MHz) 17 dBm |
| Receiving sensitivity (+/-1 dBm) | 802.11b -93 dBm 802.11g -90 dBm 802.11n (20 MHz) -88 dBm 802.11n (40 MHz) -85 dBm |
| Others | |
|---|---|
| Reset button | 1xRST |
| LED indicators | 1xSYS 1xWiFi 1xLAN/WAN 1xLTE |
| Built-in | Watchdog |
| Software | |
|---|---|
| Network protocol | PPP,PPPoE,TCP,UDP,DHCP, ICMP,NAT,HTTP,HTTPs,DNS,ARP, NTP,SMNP,Telnet,VLAN,SSH2, DDNS,etc… |
| VPN tunnel | IPSec GRE L2TP PPTP |
| Firewall | DMZ,anti-Dos, Filtering(IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web,Client,Cloud |
| Power Supply | |
|---|---|
| Input voltage | 9 to 30V DC |
| Power consumption | Idle: 100mA@12V |
| Physical Characteristics | |
|---|---|
| Ingress protection | IP30 |
| Housing & Weight | Metal, 305g |
| Dimensions | |
| Installations | Desktop, wall mounting |
| Regulatory and Type Approvals | |
|---|---|
| Regulatory | CE,CCC |
| Environmental | RHoS |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class A |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2 Air Level 3IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 |
