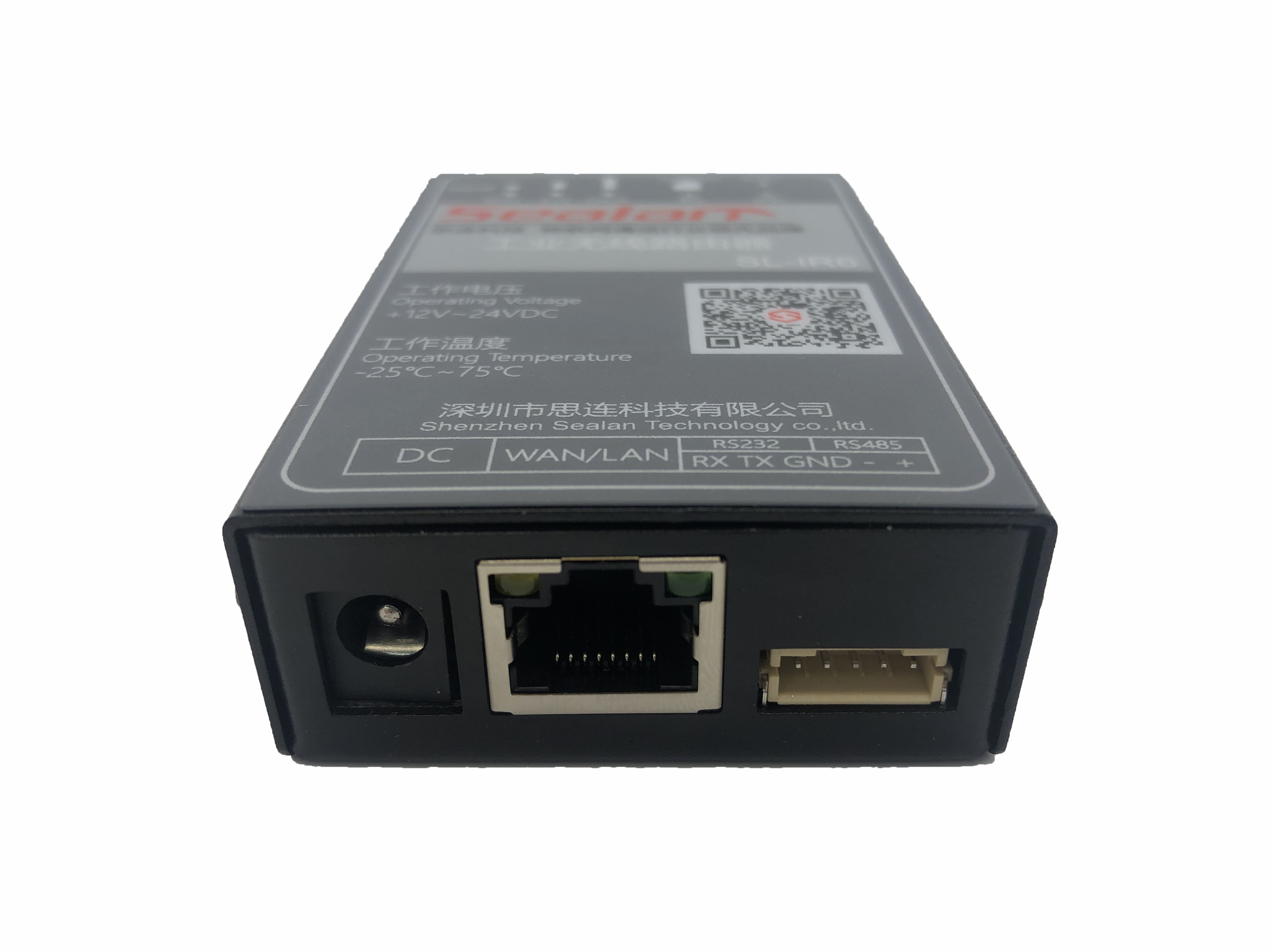

SL-IR6 Product Introduction
The Sealan High Speed Smart LTE /LTE-A Router (IR6) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
Industrial Application
- Remote Data Monitor and Control
- CCTV, security surveillance
- Water, gas and oil flow metering and schedule
- AMR (automatic meter reading)
- Power station monitoring and control
- Remote POS (point of sale) terminals, ATM
- Traffic signals monitor and control, Traffic info guidance
- Oil field, weather forecast, environmental protection, street
- lamp monitoring and control
- Early Warning of Mountain Torrent
- Fleet management
- Power distribution network supervision
- Central heating system supervision
- Weather station data transmission
- Hydrologic data acquisition
- Vending machine
- Vehicle logistics
- diagnostics controlling
- Parking meter and Taxi Monitor
- Telecom equipment supervision (Mobile base station, microwave or optical relay station)
Product Feature
Design for Industrial Application
- High-powered industrial cellular module
- High-powered industrial 32bits CPU
- Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
- Housing: iron, providing IP30 protection.
- Power range：DC 12~24V
Stability and Reliability
- Support hard are and software WDT
- Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
- Ethernet port : 1.5KV magnetic isolation protection
- RS232 port : 1.5KV ESD protection
- SIM/UIM port: 1.5KV ESD protection
- Power port : reverse-voltage and overvoltage protection
- Antenna port : lightning protection (optional)
Standard and Conveniene
- Support standard RS232、Ethernet and WIFI port that can connect to serial,Ethernet and WIFI devices directly
- Support intellectual mode,enter into communication state automatically when powered
- Provide management software for remote management
- Support several work modes
- Convenient configuration and maintenance interface (WEB or CLI)
High-performance
- Support multiple WAN access methods, including Static IP,DHCP,L2TP,PPTP,PPPOE。
- Support link backup between Cellular network and WAN
- Support local and remote firmware upgrade，import and export configure file
- Support NTP Client
- Support MAC Address clone
- WIFI support WPA/WPA2 encryption，Support MAC address filter。
- support APN/VPDN
- support DHCP Server and DHCP Client，DHCP static IP address，DDNS,firewall，NAT，DMZ host.
- Support TCP/IP、UDP、FTP（Optional），HTTP, POP3,QICQ, TELNET, FTP, SNMP, SSHD, etc(Optional)
Specification
| Cellular Interface | |
|---|---|
| Cellular Interface | 1xMAIN |
| Connector | SMA, female |
| SIM | 1x (3 V & 1.8 V) |
| WiFi Interface (optional) | |
|---|---|
| Number of antennas | 1 |
| Connector | RP-SMA, male |
| Standards | 802.11 b/g/n supporting AP and Client modes |
| Frequency band | 2.4 GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Data speed | 150 Mbps |
| Tx Power | 15dBm |
| RF output power(+/-1 dBm) | 802.11b 19 dBm 802.11g 19 dBm 802.11n (20 MHz) 18 dBm 802.11n (40 MHz) 17 dBm |
| Receiving sensitivity (+/-1 dBm) | 802.11b -93 dBm 802.11g -90 dBm 802.11n (20 MHz) -88 dBm 802.11n (40 MHz) -85 dBm |
| Hardware System | |
|---|---|
| CPU | Industrial 32bits CPU |
| FLASH | 64Mbit |
| SDRAM/DDR | DDR2 512Mbit |
| Inteface Type | |
|---|---|
| LAN | 1 10/100M LAN port(RJ45)，Auto MDI/MDIX，1.5KV magnetic isolation protection |
| Serial | 1 RS232 Port，15KV ESD protection Data bits：5、6、7、8 Stop bits：1、2 Parity：none,even,odd,space,mark Baud rate：2400~115200bit/s |
| Antenna | Cellular: 1 Standard SMA female interface, 50 ohm WIFI: 1Standard SMA female interface, 50 ohm |
| Reset button | 1xRSTERT |
| LED indicators | 1xSYS 1xWiFi 1xLINK 1x4G |
| Software | |
|---|---|
| Network protocol | PPP,PPPoE,TCP,UDP,DHCP, ICMP,NAT,HTTP,HTTPs,DNS,ARP, NTP,SMNP,Telnet,VLAN,SSH2, DDNS,etc… |
| Firewall | DMZ,anti-Dos, Filtering(IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web,Client,Cloud |
| Power Supply | |
|---|---|
| Input voltage | 12to 24V DC |
| Power consumption | Idle: 100mA@12V |
| Operating temperature | -30~+75 C |
| Storage temperature | -40~+85 C |
| Relative humidity | 95% (no condensation) |
| Physical Characteristics | |
|---|---|
| Ingress protection | IP30 |
| Housing & Weight | Metal, 160g |
| Dimensions | 91x75x22mm |
| Installations | Desktop, wall mounting |
| Regulatory and Type Approvals | |
|---|---|
| Regulatory | CE,CCC |
| Environmental | RHoS |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class A |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2 Air Level 3IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 |
